Compressed Air Filters
Compressed Air Filters
Particulate & Coalescing Filters, and Other Components
F200 Series
Van Air Systems’ F200 series coalescing and particulate filters are designed to remove contaminants from compressed air systems. Available in ¼” to 3″ NPT connection sizes and flow capacities from 15 to 1600 scfm at 100 psig in 15 housings and 9 filtration grades, the F200 series removes oil aerosols, oil vapors, condensed water, and particulates. F200 housings are made of cast aluminum and coated with an epoxy powder coating for corrosion resistance. All units include push-on elements with a durable polyester drain layer. Accessories include differential pressure indicators, wall mounting kits, connector kits and automatic drain valves.

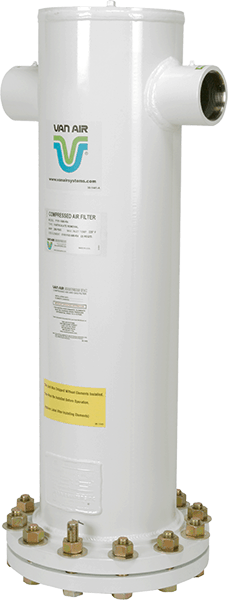

F101 Series
Van Air Systems’ F101 series coalescing and particulate filters are designed to remove contaminants from compressed air systems. Available in 2″ NPT to 6″ flange connection sizes and flow capacities up to 5000 scfm at 100 psig in 6 housings and 10 filtration grades, the F101 series removes oil aerosols, oil vapors, condensed water, and particulates. Housings are constructed of welded steel, built and stamped in accordance with the ASME code. Accessories include differential pressure indicators and automatic drain valves.
Mist Eliminators
The Van Air Systems Mist Eliminator is a special purpose coalescing filter for removing large volumes of oil and oil aerosols with a pressure drop of 1 psid or less. Minimizing pressure drop translates directly to energy savings. With a thick bed of glass fiber, the Mist Eliminator element facilitates self-cleaning by continuous draining. Contaminants are trapped at various stages within the fiber bed, not only at the surface. This prevents clogging and keeps pressure drop low.

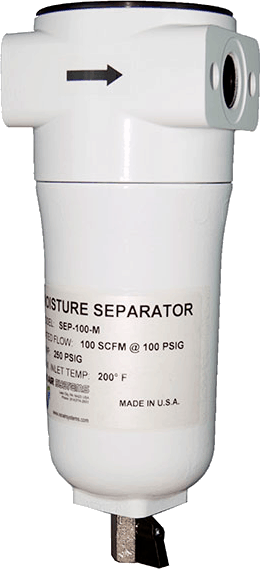

Compressed Air Moisture Separator
Van Air’s Moisture Separators remove compressor lubricant, oil aerosols, and moisture from compressed Air Systems. These separators have flow capacities up to 800 SCFM at 100 psig and available in 1/2” through 3” connection sizes. The moisture separator housings are made of cast aluminum and they are coated for corrosion resistance. Each Moisture Separator requires no electricity and includes a push-on element cartridge and manual or automatic drain valve.

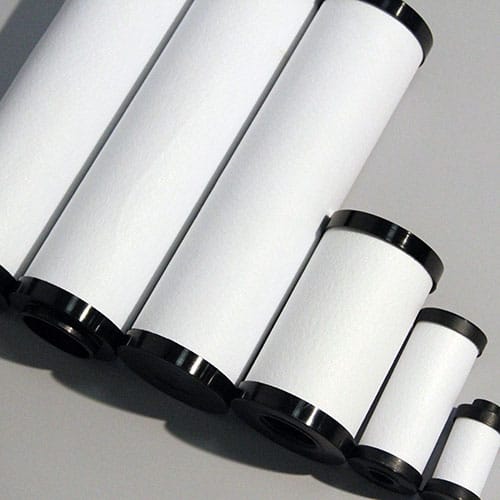

Filter Elements
Rid your compressed air or gas system of harmful oil aerosols, oil vapors, dirt, and pipe scale with Van Air Systems filter elements. Van Air Systems is the original manufacturer of 10 grades of filter elements for particulate removal, oil aerosol coalescing, and vapor absorbing applications.
